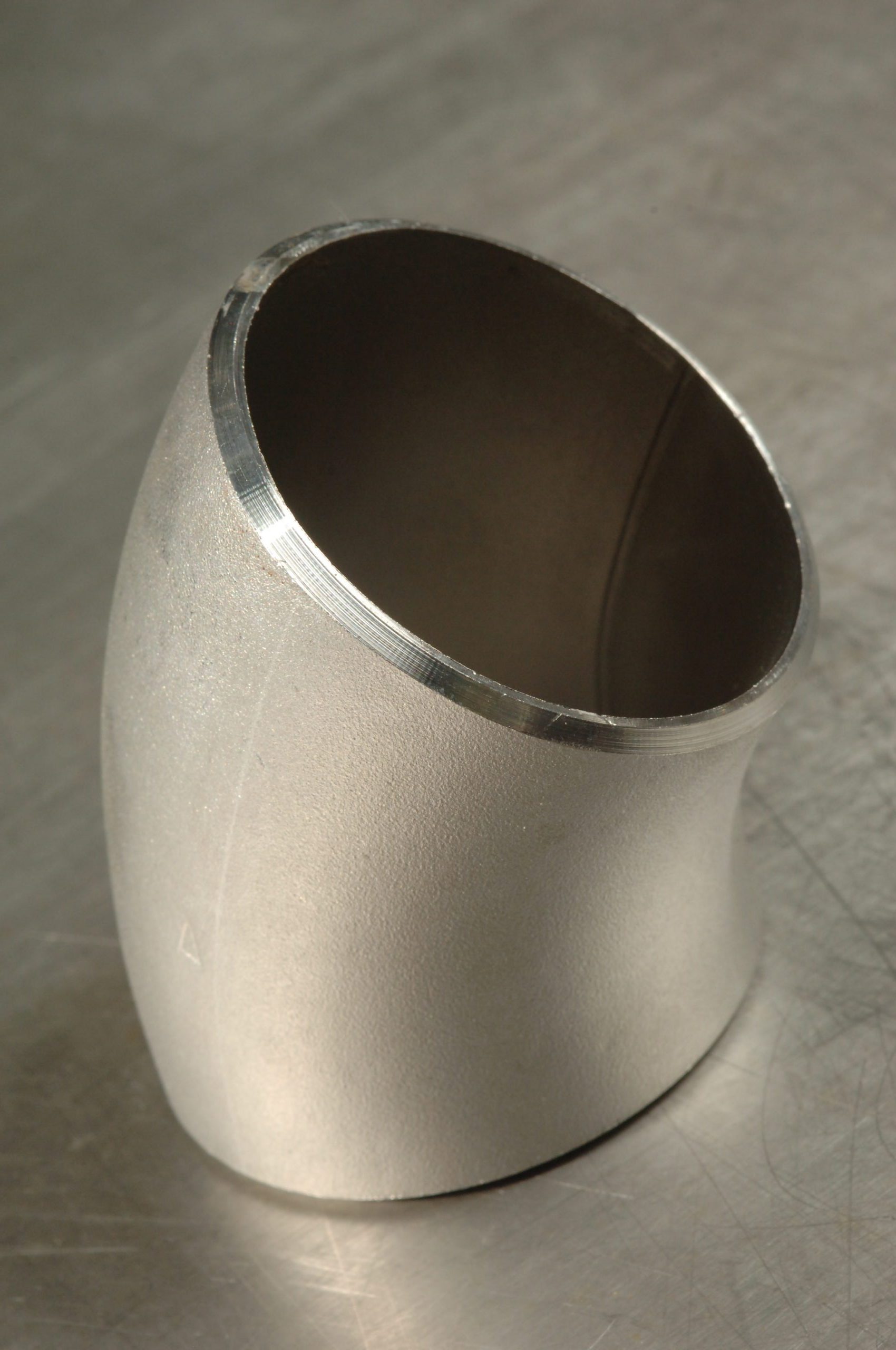

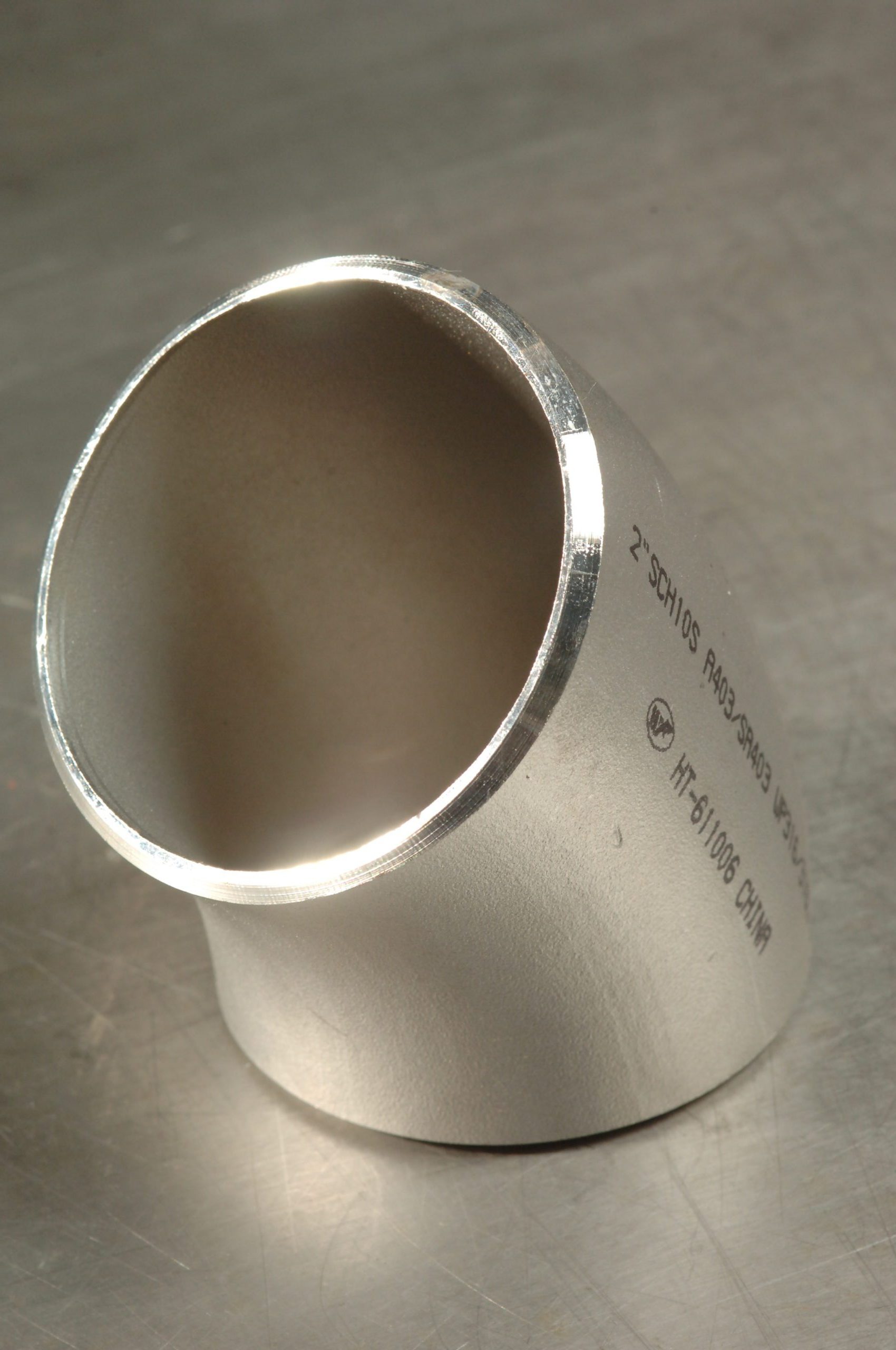

Buttweld Pipe Elbow – 45 degree

Description

Stainless Steel Buttweld Pipe Elbow – 45 degree

Available in 316 in all sizes, some sizes available in 304

x Stocked Item, # Available by request



Nominal Pipe Size Outside diameter Nominal Wall Thickness
Size (NB) mm Sch10 Sch40
15 21.34 # #
20 26.67 x #
25 33.41 x #
32 42.16 x #
40 48.26 x #
50 60.30 x x
65 73.03 x x
80 88.90 x x
100 114.30 x x
125 141.30 x #
150 168.28 x #
200 219.18 # #
250 273.05 # #
300 323.85 # #



See Pipe Chart for further dimensions
